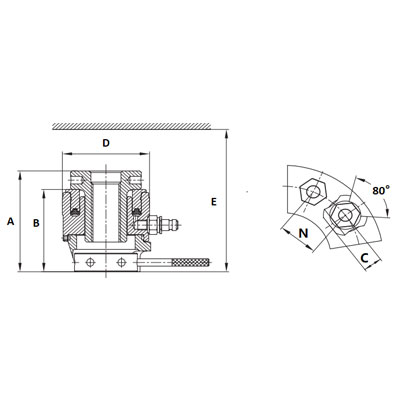

| 適用螺紋規格 | 拉伸頭 | 螺栓間距N | 最小高度E | 主體型號 | 有效行程 | 有效面積 | 承載能力 | 尺寸A | 尺寸B | 尺寸C | 尺寸D | 主體重量 |
| 型號 | mm | mm | 承載單元 | mm | mm² | kN | mm | mm | mm | mm | kg | |
| M16x2 | GT1PM1620 | 55 | 169 | HYDRFC-GT1LCB | 10 | 1496 | 226 | 135 | 113 | 27 | 86 | 3 |
| M18x2.5 | GT1PM1825 | 56 | 165 | |||||||||
| M20x2.5 | GT1PM2025 | 57 | 165 | |||||||||
| M24x3 | GT1PM2430 | 59 | 164 | |||||||||
| M27x3 | GT1PM2730 | 62 | 167 | |||||||||
| M30x3.5 | GT1PM3035 | 65 | 170 | |||||||||
| M30x3.5 | GT2PM3035 | 71 | 173 | HYDRFC-GT2LCB | 10 | 2677 | 401 | 136 | 111 | 35 | 107 | 4.1 |
| M33x3.5 | GT2PM3335 | 74 | 174 | |||||||||
| M36x4 | GT2PM3640 | 77 | 177 | |||||||||
| M39x4 | GT2PM3940 | 80 | 180 | |||||||||
| M39x4 | GT3PM3940 | 92 | 212 | HYDRFC-GT3LCB | 10 | 5127 | 769 | 160 | 126 | 46 | 138 | 7 |
| M42x4.5 | GT3PM4245 | 96 | 215 | |||||||||
| M45x4.5 | GT3PM4545 | 99 | 218 | |||||||||
| M48x5 | GT3PM4850 | 105 | 216 | |||||||||
| M52x5 | GT3PM5250 | 108 | 220 | |||||||||
| M52x5 | GT4PM5250 | 118 | 240 | HYDRFC-GT4LCB | 10 | 9783 | 1467 | 180 | 141 | 62 | 174 | 12.3 |
| M56x5.5 | GT4PM5655 | 121 | 244 | |||||||||
| M60x5.5 | GT4PM6055 | 124 | 248 | |||||||||
| M64x6 | GT4PM6460 | 127 | 252 | |||||||||
| M68x6 | GT4PM6860 | 130 | 256 | |||||||||
| M68x6 | GT5PM6860 | 145 | 278 | HYDRFC-GT5LCB | 10 | 15080 | 2261 | 202 | 157 | 78 | 210 | 18.8 |
| M72x6 | GT5PM7260 | 149 | 282 | |||||||||
| M76x6 | GT5PM7660 | 152 | 286 | |||||||||
| M80x6 | GT5PM8060 | 162 | 293 | |||||||||
| M80x6 | GT6PM8060 | 169 | 312 | HYDRFC-GT6LCB | 10 | 18972 | 2846 | 219 | 173 | 82 | 240 | 27.8 |
| M85x6 | GT6PM8560 | 169 | 312 | |||||||||
| M90x6 | GT6PM9060 | 178 | 317 | |||||||||
| M95x6 | GT6PM9560 | 181 | 322 |
